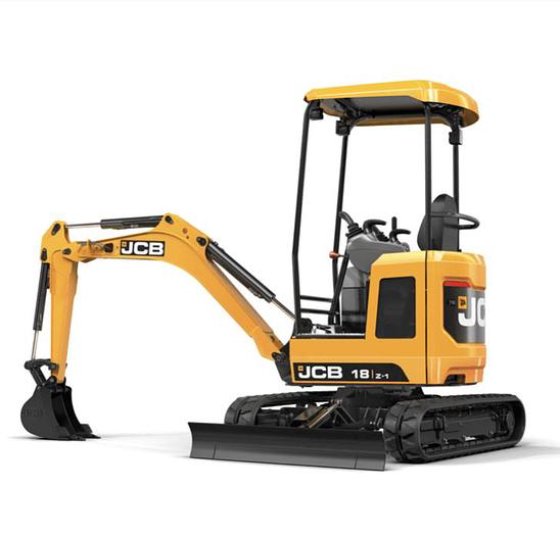

JCB 18Z
JCB 18Z Mini Excavator
Specification Value Operating weight 1,749 kg Engine power 11.7 kW (15.7 hp) Engine type Diesel Tail swing Zero tail swing Maximum digging depth 2.57 m Maximum dump height 2.63m Bucket tear out force18 kN Track type Rubber tracks (standard)Undercarriage Retractable Cab options Canopy or enclosed cab
Features
Zero-tail-swing design for working close to walls and obstacles. JCB 2GO hydraulic safety isolation system. ROPS/FOPS-compliant operator protection. 100% steel body panels for durability. Top-mounted boom cylinder and protected hydraulic hoses. Two-speed travel and proportional auxiliary hydraulics for attachments. 180° service door for easy maintenance. No daily greasing on many service points, reducing maintenance time.
Typical applications Trenching Landscaping Foundation work Utility installation Residential construction Demolition in tight spaces
JCB 35Z
JCB 35Z Mini Excavator
Specification Value Operating weight 3,556 kg Engine power18.4 kW (24.7 hp)Machine height2,482 mm (2.48 m)Width1,750 mm Maximum digging depth3,194 mm (3.19 m)Maximum digging reach5,035 mm (5.04 m)Maximum dump height3,378 mm (3.38 m)Bucket tear out force32 kN Dipper tear out force22.5 kN Tail swing Zero Tail Swing (ZTS)
Main features Zero-tail-swing design for tight job sites. Spacious cab with ergonomic controls. Steel body panels for durability. Smooth hydraulic system with proportional auxiliary controls. Easy service access to reduce maintenance time.

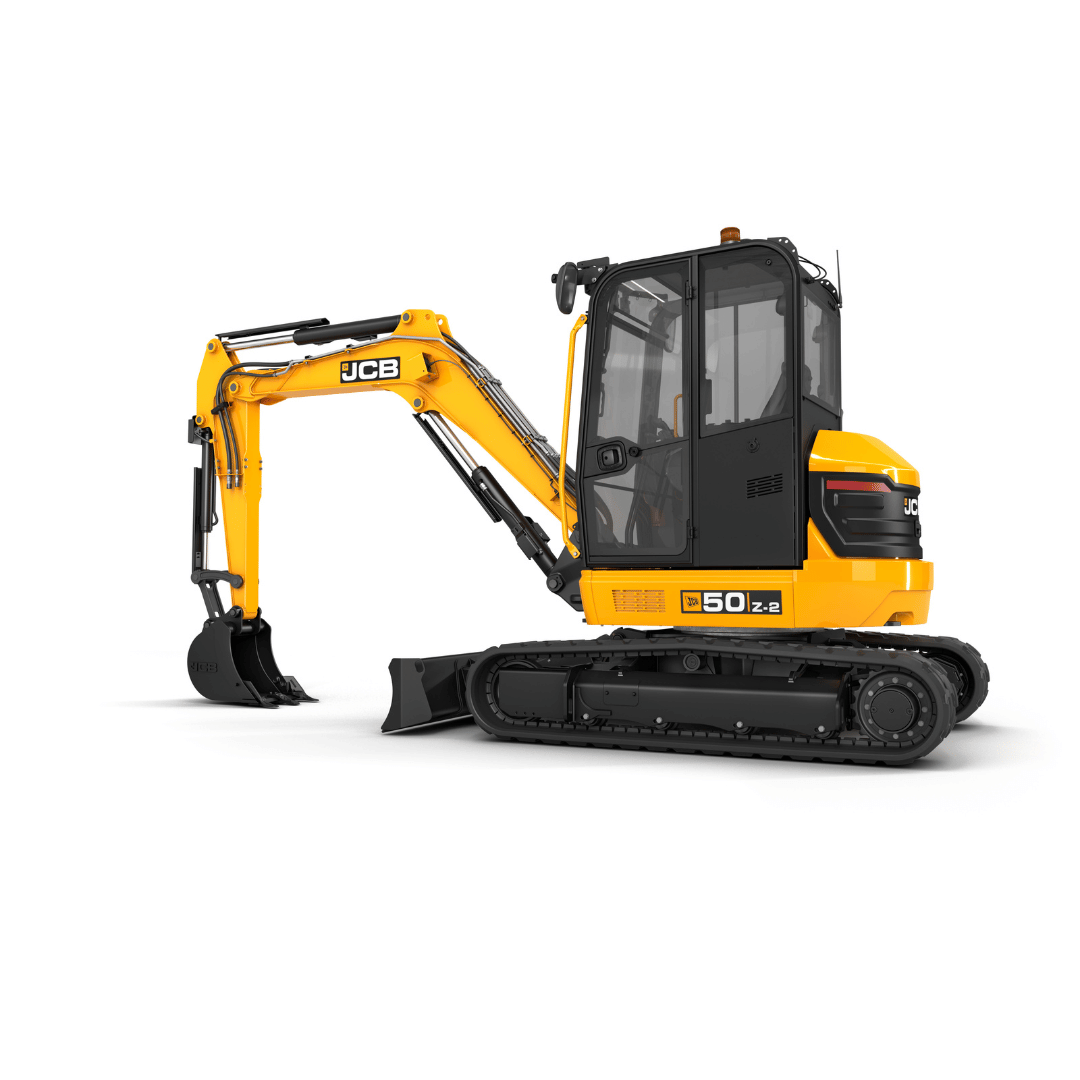

JCB 50Z
JCB 50Z Mini Excavator
Specification Value Operating weight 4,946 kg Engine power35.7 kW (48 hp)Machine height2,551 mm (2.55 m)Width1,960 mm Maximum digging depth3.53 m Maximum digging reach5.85 m Maximum dump height4.0 m Bucket capacity0.14–0.22 m³Tail swing Zero Tail Swing (ZTS)
The JCB 50Z is designed for work in confined spaces while providing greater digging depth and lifting performance than smaller mini excavators. It features: Zero-tail-swing design 8 operating modes Auto idle and one-touch idle Live Link telematics Heavy-duty boom and undercarriage Spacious operator cabin with optional AC

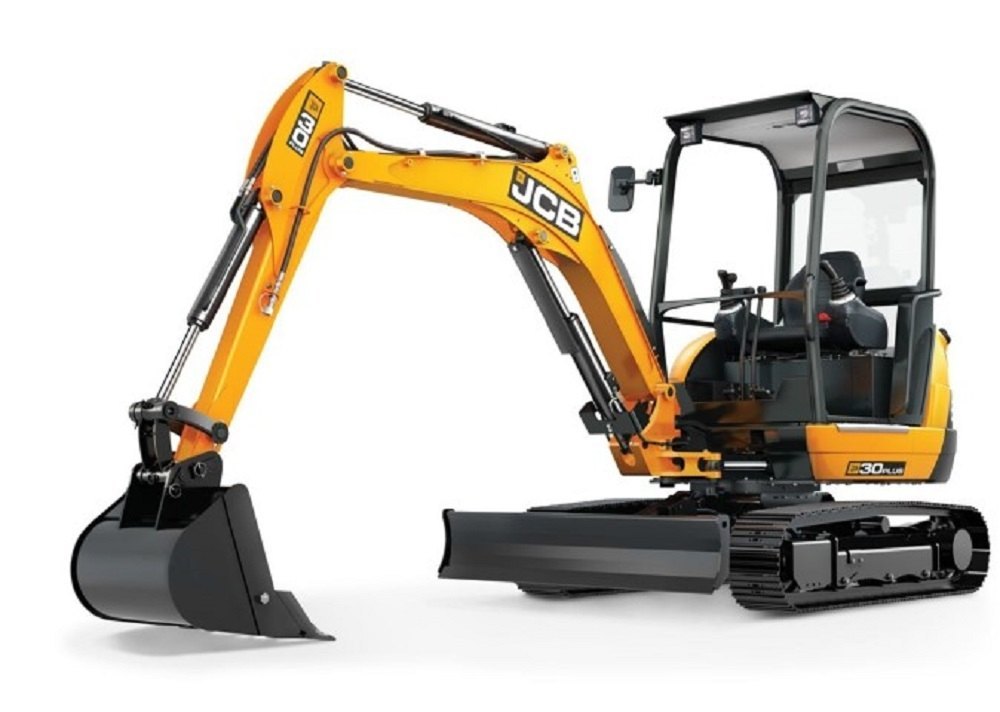

JCB 30 Plus
JCB 30 Plus Mini Excavator
Specification Value Operating weight2,870 kg Engine power18.4 kW (24.7 hp)Machine height2,430 mm (2.43 m)Width1,500 mm Maximum digging depth3.05 m Maximum dump height3.22 m Maximum digging reach4.77 m Engine Perkins diesel Fuel tank capacity56 L
The JCB 30Plus is a compact mini excavator designed for urban construction, utility work, landscaping, and trenching. It features: King-post boom for efficient digging in confined spaces. High-strength undercarriage. Comfortable operator station with ergonomic controls. ORFS hydraulic fittings for improved reliability. Compatible with multiple attachments for versatile applications.

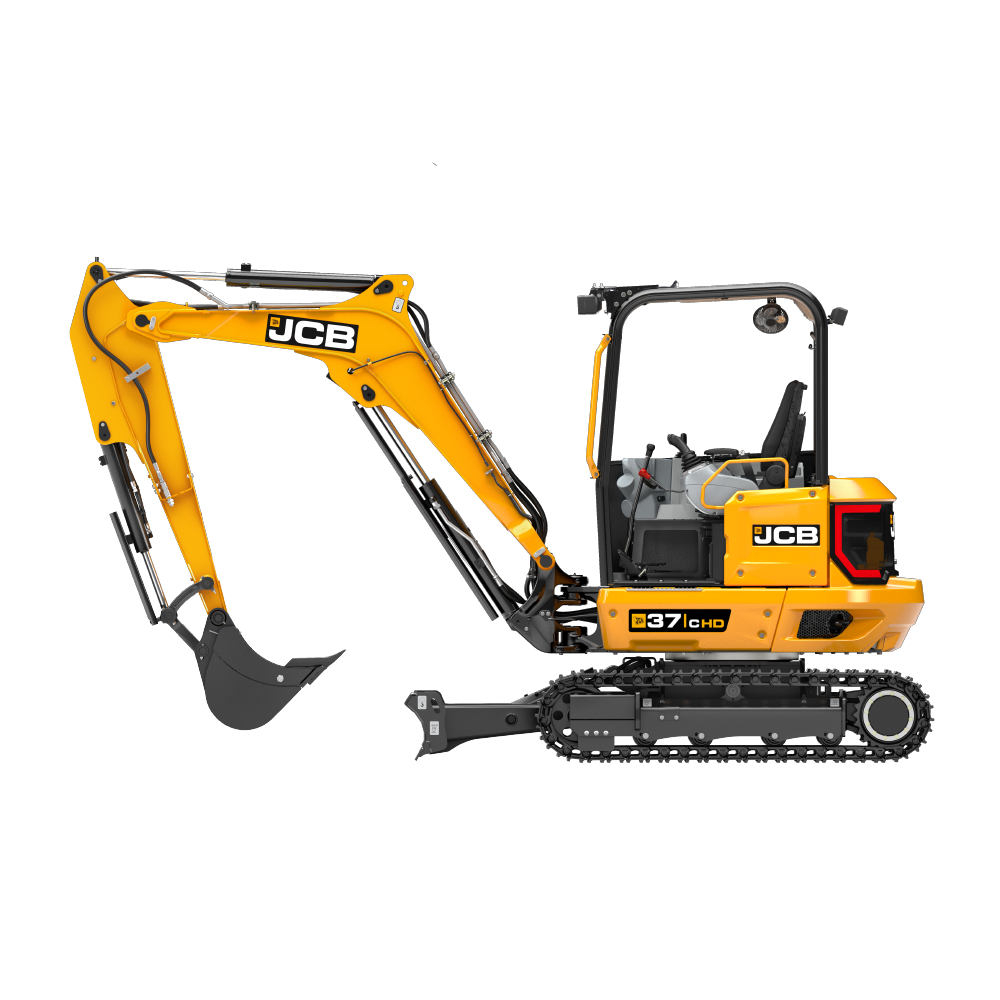

JCB 37C
JCB 37C Mini Excavator
Specification Value Operating weight 4,052 kg Engine power18.9 kW (25.3 hp)Machine height2,180 mm (2.18 m)Width1,550 mm Maximum digging depth3.48 m Maximum digging reach5.14 m Maximum dump height3.54 m Bucket capacity0.11 m³Tail swing Conventional Tail Swing (CTS)
Main features Heavy-duty boom and arm with high-tensile steel construction. Conventional tail swing for higher lifting performance. JCB 2GO hydraulic safety system. Comfortable operator station with suspension seat, USB charging port, phone tray, and ample storage. Wide-opening steel bonnet for easy maintenance access. Suitable for construction, trenching, landscaping, and utility work.
JCB 55Z
JCB 55Z Mini Excavator
Specification Value Operating weight5,520 kg Engine power35.7 kW (48 hp)Machine height2,553 mm (2.55 m)Width1,960 mm Maximum digging depth3.84 m Maximum digging reach6.10 m Maximum dump height4.27 m Bucket capacity0.14–0.22 m³Tail swing Zero Tail Swing (ZTS)
Main features Zero-tail-swing design for working in confined spaces. Heavy-duty boom, arm, and undercarriage. High hydraulic flow (126 L/min) for improved attachment performance. Comfortable cabin with optional air conditioning. Easy maintenance with wide-opening service panels and JCB Live Link telematics (on applicable models).

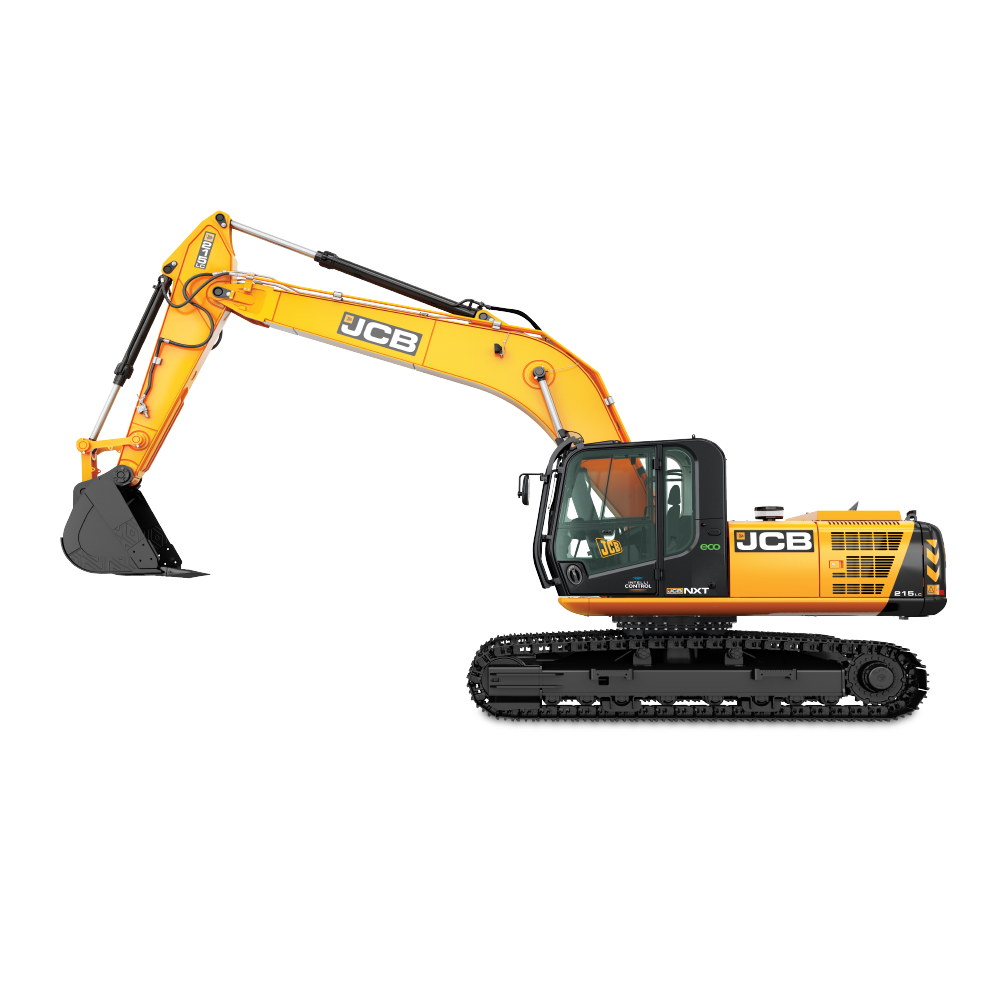

JCB NXT 215LC
The JCB NXT 215LC Excavator is a 20–22 ton class tracked excavator designed for heavy-duty construction, mining, and infrastructure work. It delivers high productivity, fuel efficiency, and strong digging performance, making it a reliable choice for demanding job sites.
Engine Engine Type: Isuzu / JCB Diesel Engine Power: 140 HP (104 kW approx) Cylinders: 4 Emission: BS-IV / CPCB compliant
Excavator Performance Operating Weight: ~21,500 kg Bucket Capacity: 0.9 – 1.1 m³ Max Digging Depth: ~6.0 – 6.2 m Max Reach: ~9.5 m Bucket Digging Force: High (heavy-duty performance)
Hydraulics Advanced hydraulic system for smooth operation Faster cycle times for higher productivity
Undercarriage Track Type: Heavy-duty crawler tracks Excellent stability on uneven terrain
Swing System Smooth and powerful swing motor 360° rotation capability
JCB NXT 225LC
The JCB NXT 225LC Excavator is a 22–23 ton class tracked excavator built for high productivity and heavy-duty applications. It is an upgraded version of the 215LC, offering better power, stronger hydraulics, and higher efficiency for demanding construction and mining work.
Engine Engine Type: Isuzu Diesel Engine Power: ~173 HP (129 kW approx) Cylinders: 4 Emission: BS-IV / CPCB compliant
Excavator Performance Operating Weight: ~22,500 – 23,000 kg Bucket Capacity: 1.0 – 1.2 m³ Max Digging Depth: ~6.3 – 6.5 m Max Reach: ~9.8 – 10 m High bucket digging force for tough soil
Hydraulics Advanced hydraulic system for smooth & fast operation Higher efficiency than 215LC Faster cycle times.
Undercarriage Heavy-duty crawler tracks Excellent stability on rough terrain.
Swing System 360° rotation Smooth and powerful swing motor
Fuel & Capacity Fuel Tank: ~320 Litres Designed for long working hours
JCB NXT 345LC
The JCB NXT 345LC Excavator is a 35-ton class heavy-duty excavator designed for mining, quarry, and large infrastructure projects. It offers high power, deeper digging capability, and superior durability, making it ideal for demanding job sites.
🏗️ Engine Engine Type: JCB DIESELMAX / Heavy-duty diesel engine Power: ~221 HP (165 kW) Cylinders: 6 High torque: ~960–1000 Nm for tough operations
⛏️ Excavator Performance Operating Weight: ~35,000 – 36,000 kg Bucket Capacity: 1.8 – 2.3 m³ (HD bucket) Max Digging Depth: ~6.5 m Max Reach: ~9.9 m Bucket Tearout Force: ~22,000+ kgf
⚙️ Hydraulics Advanced hydraulic regeneration system Faster cycle time and improved fuel efficiency
🚜 Undercarriage Heavy-duty crawler tracks (800 mm width approx) High stability in rough and mining terrain
🛞 Swing System 360° rotation Smooth and powerful swing motor
⛽ Fuel & Capacity Large fuel tank for long working hours Built for continuous heavy-duty operation
JCB NXT 385LC
The JCB NXT 385LC Excavator is a 35–38 ton class heavy-duty excavator built for mining, quarry, and large-scale infrastructure projects. It is one of the most powerful excavators in the JCB lineup, designed to deliver maximum productivity, durability, and efficiency in extreme working conditions.
🏗️ Engine Engine Type: JCB DIESELMAX 7.2L CRDI Power: ~284 HP (212 kW) Torque: ~1150 Nm (high torque output) Cylinders: 6
⛏️ Excavator Performance Operating Weight: ~37,000 – 37,700 kg Bucket Capacity: 1.4 – 2.3 m³ Max Digging Depth: ~6.3 – 6.8 m Bucket Tearout Force: ~262 kNm
⚙️ Hydraulics Advanced high-flow hydraulic system (~300+ LPM) Faster cycle time → more productivity Designed for continuous heavy-duty operation
🚜 Undercarriage Heavy-duty crawler tracks Reinforced structure for mining & quarry use High stability on uneven terrain
🛞 Swing System 360° rotation High swing torque (~129 kNm)
⛽ Fuel & Capacity Fuel Tank: ~590 Litres Built for long working hours without frequent refueling
